Description
Ideal for Retail, Hospitality, Lobby, Residential or Commercial Space
Break the Proportions and Limits of Spaces
No Unpleasant Dark Areas near the Ceiling
Enhance the Objects on the Wall
Makes the Room Appear Larger and More Spacious
It is Ideal for Creating a Visually Smooth, Flat Surface
Also be Ideal for Creating a Texted Surface
Features

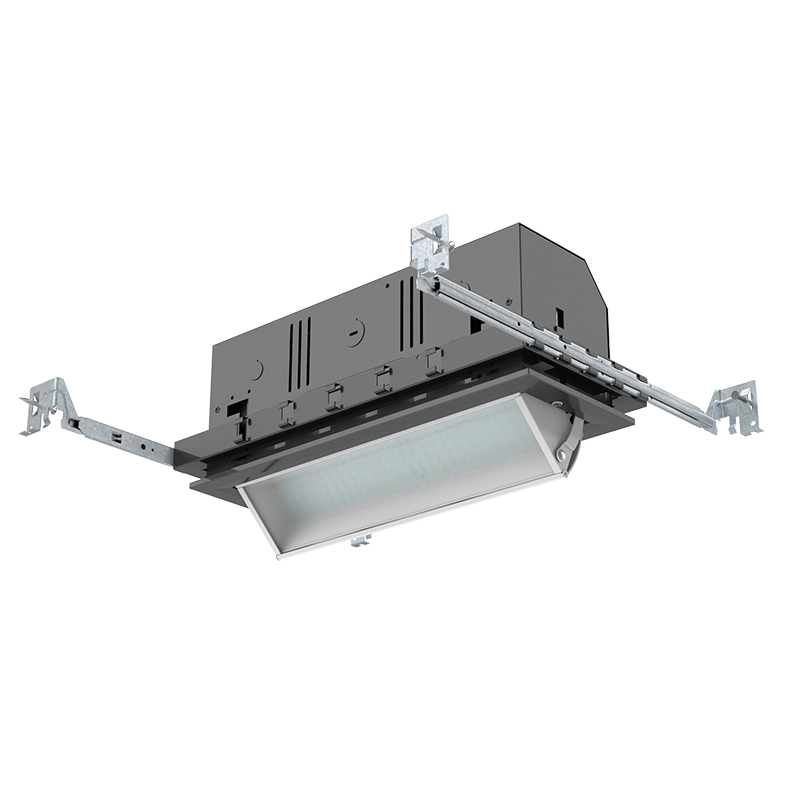

High Power Linear LED Multiple Downlight
Aluminum Material Lamp Body + Gauge Steel Housing

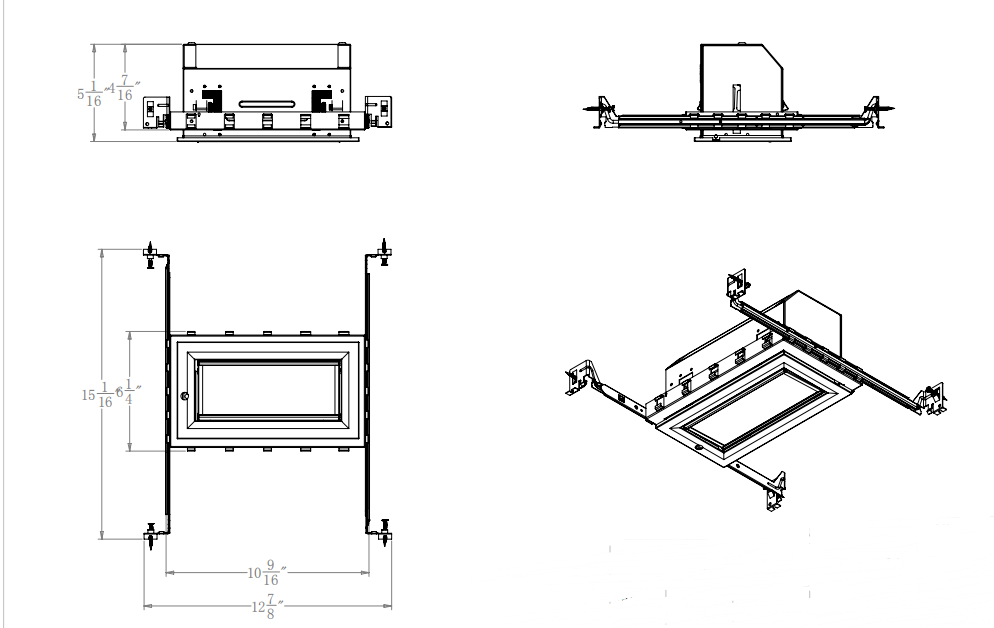

Available for 8”, 12” and 16” Dimensions
Accommodate to 1/2” to 1 1/4” Thick Ceiling

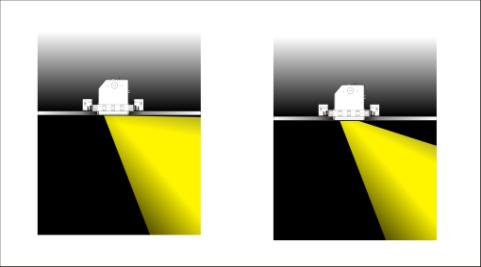

Allow Vertical 0~90 Degree Adjustment
Use Isolated Power Supply, Safe and Reliable
Compatible Multi Brand Dimmer, Stable Dimming, No Strobe
Finish: WH08, BK, SN, CH
Optical
Can be used in Combination with the General Lighting and High Contrast Versions
Solid White Light Led Modules are Available in 2700K-4500K
Input Voltage: 120V, 230V, 277V, 90-305V
High Power: 40W, 60W, 80W
CRI: 80+ / 90+
PF> 98%
LED Type: SMD
Dimmable Optional, TRIAC or NONE/RD 0-10V
Mounting
Embedded Installation
Use FT4 Wire with High Flame Retardant
4-Way Hanger Bar for Ease Installation
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-W
|
liteharbor | 198 KB | 215 |
Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
Contacting Liteharbor always makes surprise! www.liteharbor.com
