Description
3.5 inch Shallow LED recessed fixtures with round or square apertures offer energy-efficient, precision lighting for accent, task, or
wall wash applications.
This dimmable LED recessed light is designed with only a 4-5/8″ high housing to easily fit into new construction tight plenums.
A feature enriched, small aperture downlight, the innovative design allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim.
This low profile LED downlight delivers about 950 lumens of award-winning lighting performance while using minimal plenum space.Let your ceilings stand tall, and give them the room they deserve.
Features
Separable rotating reflector design makes it easy for replacement.
Provide unique high-low lamp positioning with the simple twist of a screwdriver.
Power supply using isolation scheme, driver can achieve high power factor and conversion efficiency, constant current output.
Universal 120V-277V driver with optional 0-10V standard dimming protocol.

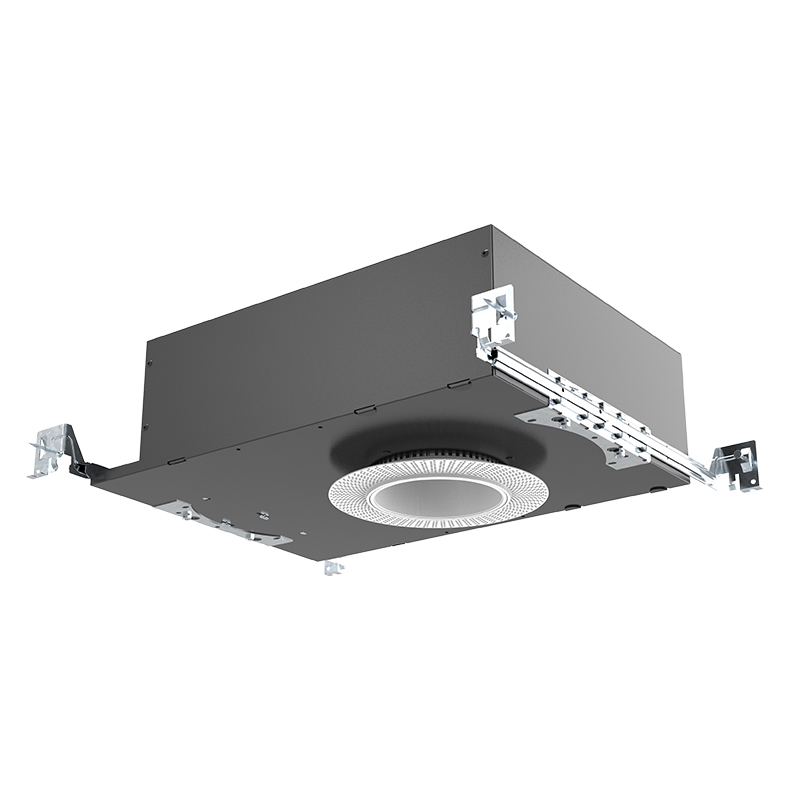

Housing
Heavy duty black powder coated cold roll steel frame.
Designed for New Construction installation
Housing can be installed in 1/2″ to 1-3/8″ thick ceilings
Housing types include IC Air-Tight or Non-IC Rated (must specify).
Junction box and driver are located on opposite ends of the housing, with easy access for maintenance and installation.
Optional round or square aperture shape.
Trimless design is available.
LED Light Engine
Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is available)
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
This energy efficient downlight uses only 12-watts and is
comparable to a 50-watt Halogen light bulb.
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output
Optics
12° Spot, 24° Narrow Flood and 36° Flood
Applications
Widely used for commercial and residential applications.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
Vertical Downlight
With precision optics and adjustments, luminaires put exactly the right amount of light in precisely the right places.
Round type can achieve 3 beam angles without replacing any accessories.
Allow for 358 degree rotation.
Vertical downlight used with vertical reflector matched.
Adjustable Downlight
Additional adjustability allows for locking including 0º-30º tilt and 358º rotation while always maintaining center beam candle power.
Adjustable downlight used with adjustable reflector matched.
Wall Wash Downlight
High performance wall wash with asymmetric distribution provides uniform illumination.
Allow for 358 degree rotation.
Wall wash downlight used with wall washing reflector matched.
INSTALLATION
Housing types include IC Air-Tight, CCEA (Chicago Plenum),
or Non-IC Rated (must specify).
Non-IC rated housings must be kept at a minimum of 3″ away
from insulation.
adjustable hanger bars (14”-25”) with
integral nail included.
PACKAGE
CTN Size: 490*390*153mm
1 PCS/CTN
