LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• 50,000 hrs average rated life
Electrical System
• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

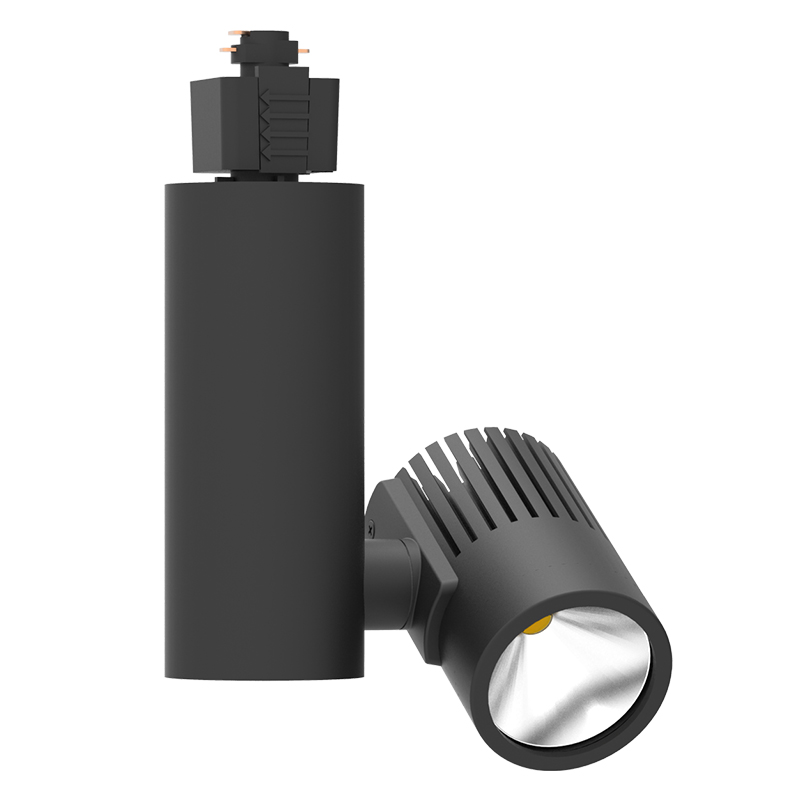

K3023L
Single head, 50 Watt, 4100 Lumen
Finish: White/ Black/ Silver/ Satin Nickel
K3023M
Single head, 32Watt, 2550 Lumen
Finish: White/ Black/ Silver/ Satin Nickel
K3023M2
Twin heads, 64 Watt, 5100 Lumen
Finish: White/ Black/ Silver/ Satin Nickel
K3023S
Single mini head, 10 Watt, 850 Lumen
Finish: White/ Black/ Silver/ Satin Nickel
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V
Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
