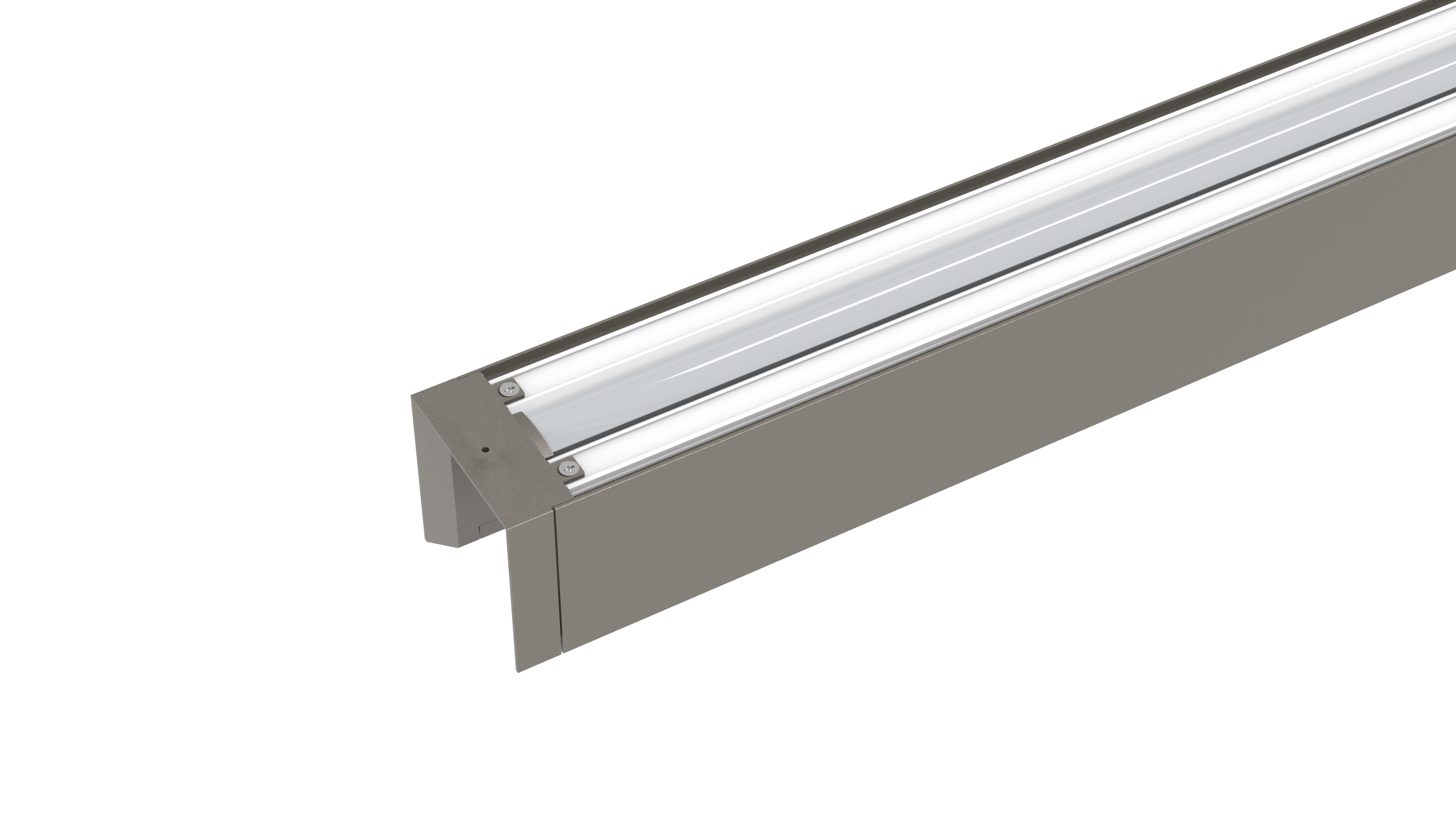

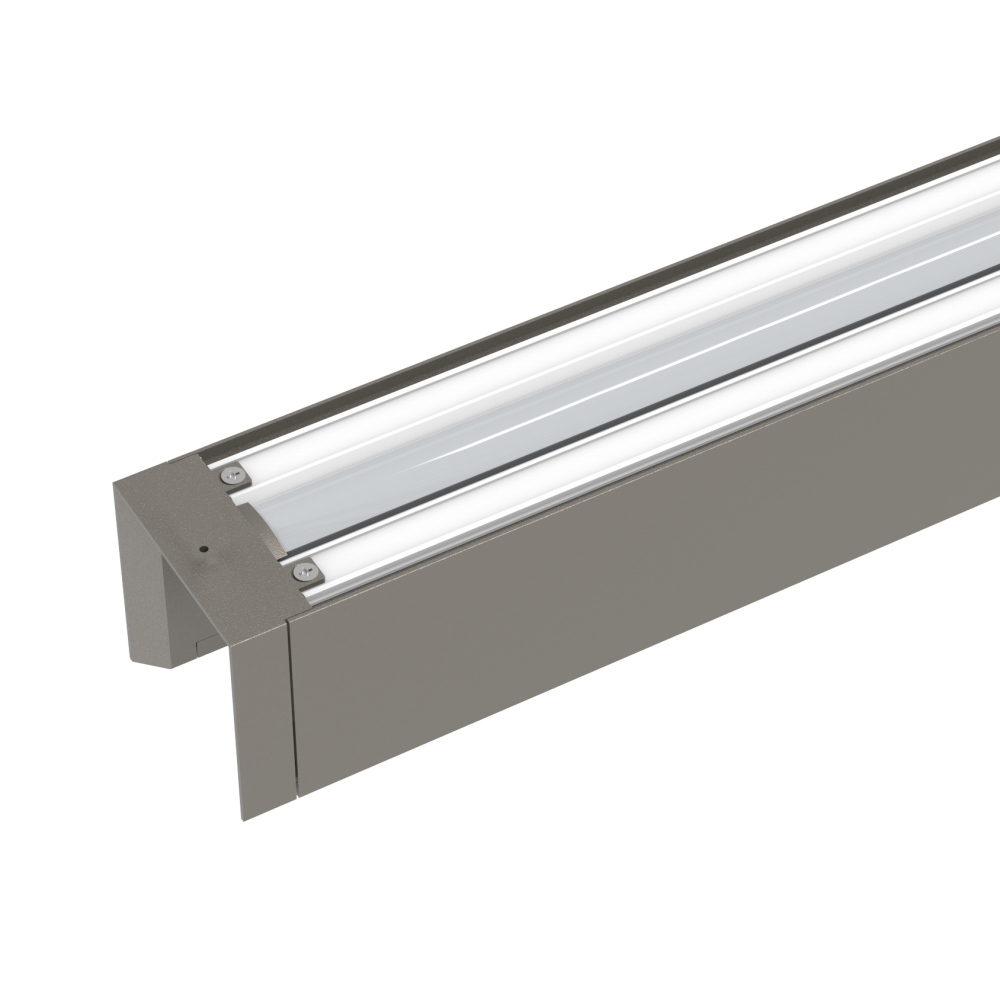

High Performance LED Linear Up and Down Light
FEATURES
– Simple elegant linear fixture suitable for high end offices, lounges, retail space and showrooms.
– Invisible LED source, produces high quality illumination with CRI>80/90.
– Integrated 0-10V or SCR dim driver for even greater energy saving.

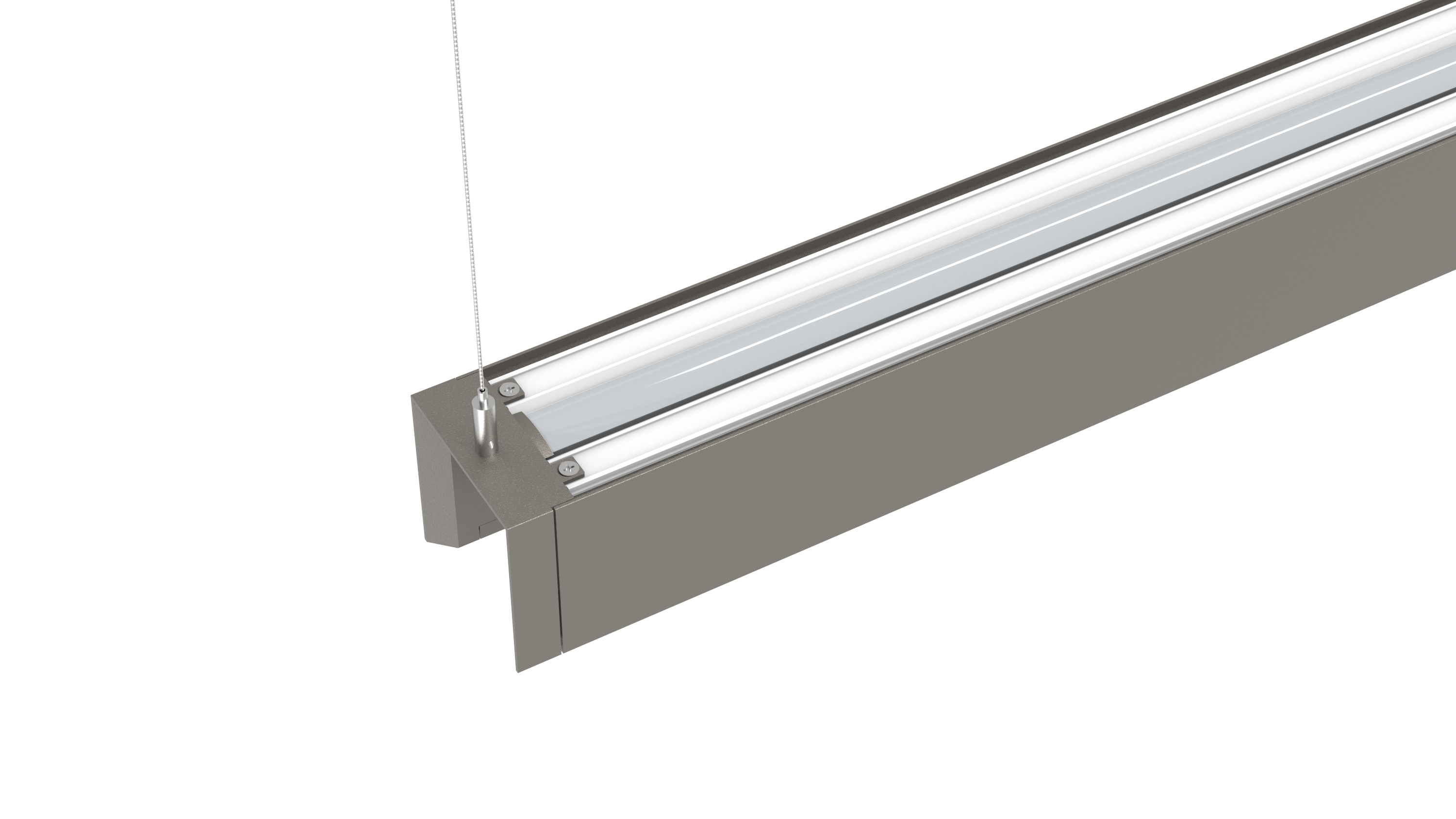

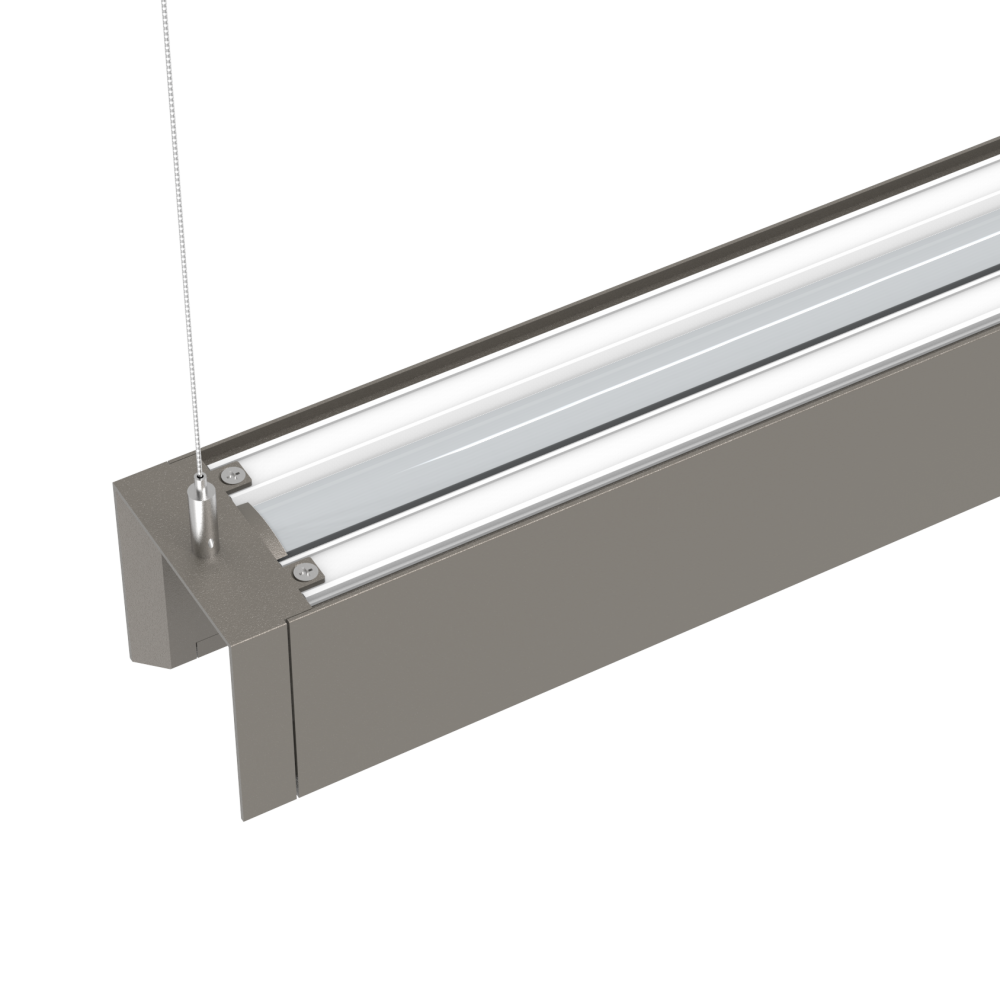

– Simple pendant installation with aircraft cable.
– Adaptable hardware convert individual fixtures to linkable light for continuous run.
– High-quality optical design, lights upward for unique ambient lighting,and effcient down light for task lighting.
DETAILS
| Item No. | DG0704-B |
| Energy (W) | 40W/55W |
| OPptical Distribution | OD 75/25 | 75%up/25%down |
| Finish | SBK/SG/SWH |
| Voltage | Universal |
| CRI | 80/90 |
| Dimmable | Non-Dim/0–10 V Dim 120–277 V/RF2.4G |
| CCT | 2700K/3000K/3500K/4000K |
| Installation Selection | Structure or remodel/Remote/Drywall/The Wire |
| RemoteControls (Optional) | Multifunction Remote Controller/Microwave Motion Sensor |
| Size | 4ft |
Driver
High Efficiency,High Power Factor, Low THD, Flicker Free Wireless Dimmable.
Communication Protocol: RF2.4G -Controllable Distance: >30 Meters(Without Obstacle)
-Control Method: Remote Controller,86 Control Panel Sensors
-Dimming Range: 3%-100%
-One Output: Dimmable Driver
-Two Output: Dimmable &Color-temp Adjustable Driver
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
