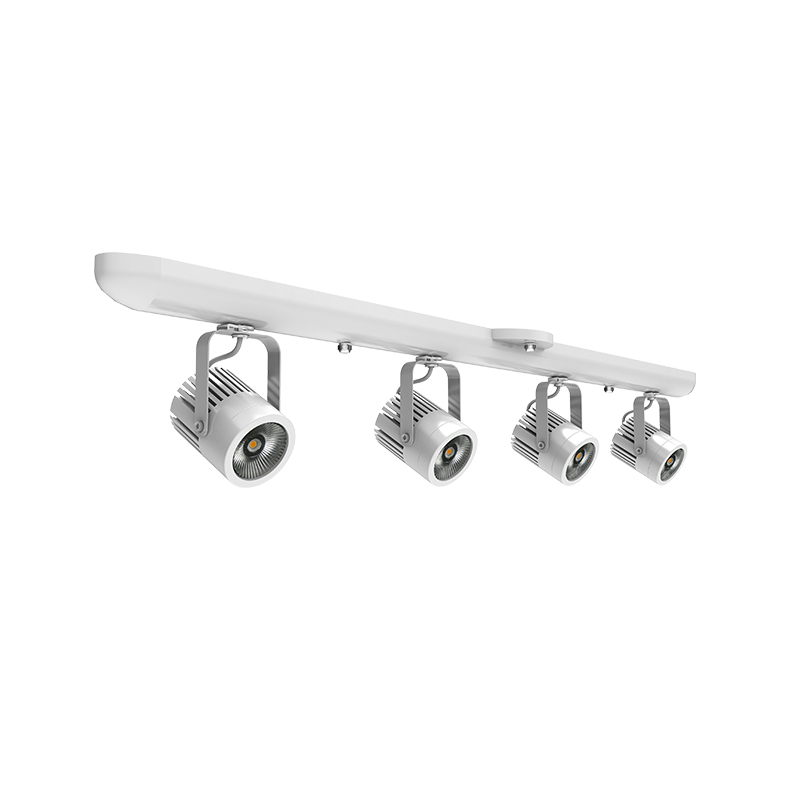

Line Volt. Die-casting LED Track Light 4 Head

Line Volt. Die-casting LED Track Light 4 Head

ITEM No.: K3023-4C
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 32W/Lamp
Lumen : 2720 Lumen/Lamp

LED COB track light WITH CANOPY

LED Light Engine

  • Color Temperature 2700K-6000K
  • CRI 80+
  • 3 Step MacAdam (3 SDMC)
  • Passive aluminum heat sink
  • 50,000 hrs average rated life

Electrical System

  • 120V/277V 50/60Hz input
  • Over voltage, over current and short circuit protection: Auto recovery
  • MTBF > 100,000 hours

K3023-4C

Ceiling mounted single head

30 Watt/Lamp

2550 Lumen/Lamp

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

Track Dimming

  • (ELV) reverse phase control dimmers. 120V only.
  • Dimmable 100 – 10%

Canopy Dimming

  • ELV Dimming 120V
  • 0-10V Dimming 120V or 277V

Compatibility

Track luminaire is designed for use with the following track systems:

  • Single Circuit/Single Neutral 120V
  • Two Circuit/Single Neutral 120V (No Dimming)
  • Two Circuit / Two Neutral 120V
  • Two Circuit / Two Neutral 277V

Mounting

Mounts to a standard 4” square or octagon junction box

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty

Product File Download

# File Added by File size Downloads
1 pdf K3023-4C liteharbor 363 KB 171
