DMX decoder 512DMX |
512/1990 Standard | 12/24VDC |
| 256 levels | 4 channels | |
| LED Driver | 85~240VAC/12VDC | UL Listed |
| 5 years warranty | Mean Well/ Rico | |
| RGBW Chip | 40W RGBW |
Individually addressable( channels |
| 9 x 9 mm | Extreme Lm density | |
| COB | Low Thermal resistance | |
| Glass lens |
Level 1 moisture sensitivity |
|
| MCPCB Available |
Compatible with(high( Uniformity mixing lenses |
|

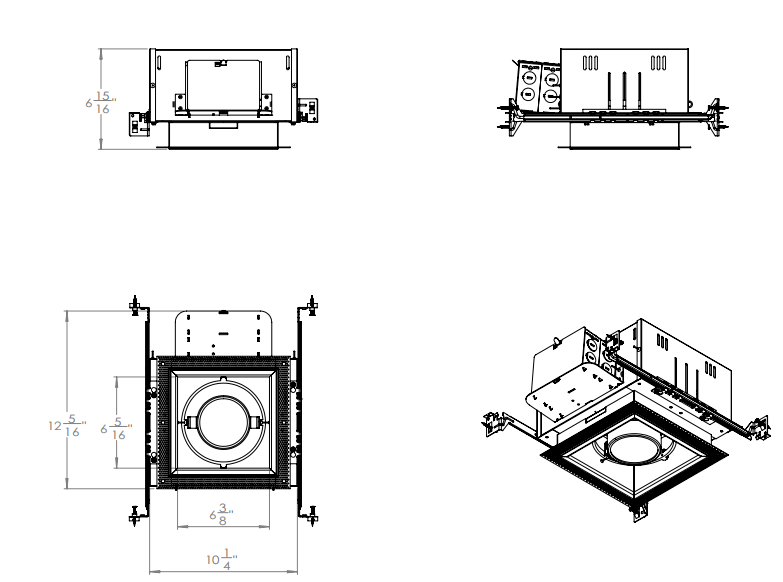

| FIXTURE | Trim less or trimmed | UL / ETL Listed |
|
0.5mm thick gauge Aluminum / steel sheet |
4 “device” Compartments for Electrical equipment |
|
|
High grade commercial brackets |
Swivel in all directions floating head |
|
|
1/2” UL standard Knockouts |
5 Year warranty | |
| CERTIFICATE | ETL, UL, CCC, CE, TUV, RoHs, Fcc | |
| WARRANTY | 5 Years | |
Application
Down-lighting with RGBW and 512DMX control
• High end residence and Commercial applications
• Hotel
• Casino
• Photo Studio
• Art gallery
• Film studio
• Film set

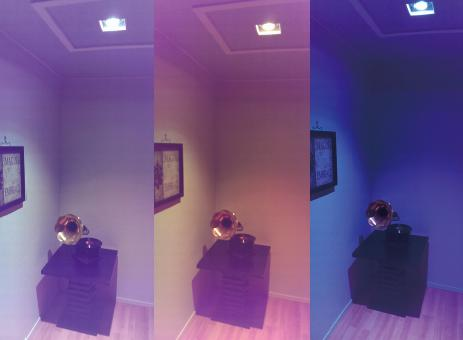

RGBW state of the art down light
Imagine creating any color your mood desires just by press of a button
Regular lighting
Reading Mode
Color changing
Party mode
DMX 512 controller needed
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-C
|
liteharbor | 308 KB | 249 |
