Construction
– Cast aluminum trim routes heat away from electrical components
– 2″ LED housing required for use of 2″ LED Downlight Series
Optical System
– Optical lens diffusers eliminate “hot spots” , uniform light
– Beam spread options available: Standard Flood, Narrow Flood
Electrical
– Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
– Dimmable to 10% with most standard triac dimmers
– Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
– Lifetime rated for greater than 35,000 hours
– LM-79, LM-80 testing performed in accordance with IESNA standards
– 120V input to driver
Finish
– Exterior white powder coat finish
– Also available in Black, Oil-Rubbed Bronze and Nickel
Installation

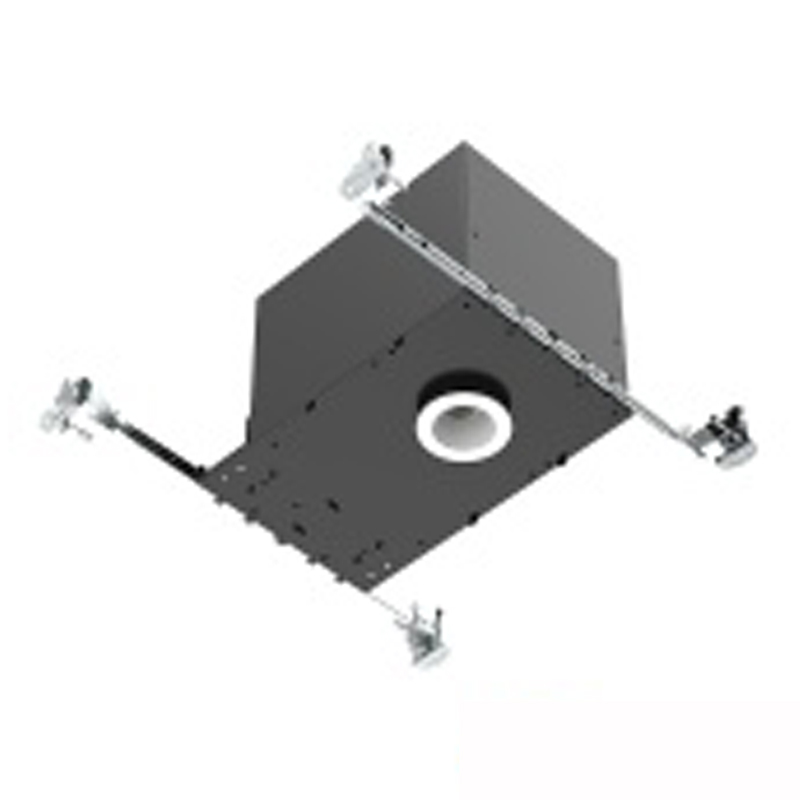

– 2″ recessed housings required: Available in remodel, new construction, and IC/ Airtight new
– Quick and easy installation with a snap-in IDEAL connector and friction clip mounting system
Listing / Warranty
– ETL listed to US and Canadian standards for damp location W/Feed through.
– 5 Year Limited Warranty.
Applications
– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Parameter
Voltage: 120V
Watt: 8W
Lumen: 600lm
CRI: 80/90+
CCT: 3000K, 4000K, 5000K
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL2-R-IA, BL2-S-IA
|
liteharbor | 505 KB | 202 |
